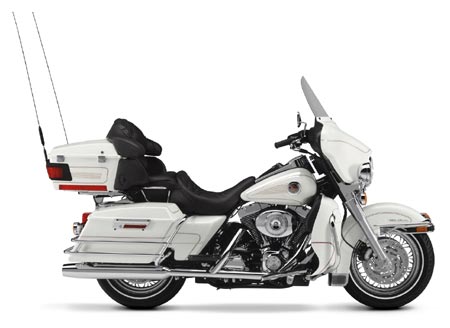

2002 Harley-Davidson FLHTCUI Ultra Classic Electra Glide
Specifications:
Dimensions
Length 98.3 ins. (2496.8mm)
Seat Height (measure Laden w / 180-lb. Rider) 27.3 ins. (693.4 mm)
Seat Height (unladen) 30.7 ins. (779.8 mm)
Ground Clearance 1.5 ins. (130.0 mm)
Rake 26.0 degrees
Trail 2.6 ins. (157.5 mm)
Wheelbase 63.5 ins. (1612.9 mm)
Tires: Dunlop Harley-Davidson Series
Front - D402F MT90B16 72H
Rear - D402 MT90B16 74H
Fuel Capacity (includes 1.0 gal. Reserve) 5.0 gal. (9.18 L)
Reserve Fuel Capacity (warning light @ approx. 1.0 gal.) 1.0 gal. (3.8 L)
Oil Capacity 4.0 qts. (3.8 L)
Dry Weight 788.0 lbs. (357.8 kg)
Vehicle Weight In Running Order (unladen) 831.1 lbs. (377.3 kg)
Gross Vehicle Weight Rating 1259.0 lbs. (571.6 kg)
ENGINE
Engine 45 º Air-cooled Twin Cam 88 ® (vibration isolation-mounted)
Valves Pushrod-operated overhead valves; w / hydraulic
self-adjusting lifters; two valves per cylinder
Bore x Stroke 3.75 x 4.0 ins. (95.25 x 101.6 mm)
Displacement 88 cu. ins. (1450 cc)
Compression Ratio 8.9:1
Fuel System Electronic Sequential Port Fuel Injection (ESPFI)
(Single runner, 45 mm throttle bore ESPFI)
Drivetrain
Primary Drive Double row chain, oil bath,
mechanical tensioner, 36/25 ratio
Final Drive
Gates carbon fiber reinforced
polychain belt, 32/70 ratio
Clutch 9-Plate, wet
Five-speed Transmission
Overall Ratio::
1st 10 110
2nd 6958
3rd 4953
4th 3862
5th 3150
CHASSIS
Frame Mild steel, rectangular section backbone
w / twin down-tubes
Swing Arm Conventional rectangular
Telescopic Fork Front cartridge-style damping
Air-adjustable rear shocks
Wheels 9-hollow spoke, cast aluminum alloy (laced option)
except two-tone silver / black gold cast only
Brakes:
Caliper type Dual-piston front and rear
Rotor type (diameter x width): Patented, Uniform Expansion rotors
Front (DUAL) 11.5 ins. x .20 ins. (292.1 mm x 5:08 mm)
Rear 11.5 ins. x .23 ins. (292.1 mm x 5.84 mm)
Suspension travel:
Front 4.6 ins. (116.8 mm)
Rear 3.0 ins. (72.6 mm)
PERFORMANCE
Engine Torque (per SAEJ607) 2:
North America 86.0 ft.. lbs. @ 3500 rpm (116.6 NM @ 3500 rpm)
International 81.0 ft. lbs. @ 3100 rpm (110.0 NM @ 3100 rpm)
Lean Angle (per SAEJ1168):
Right 31.0 degrees
Left 30.0 degrees
ELECTRIC
Battery Sealed, maintenance-free, 12-volt, 30 amp-hour, 270 CCA
(Per Battery Council International rating)
Charging 44-amp permanent magnet alternator w / solid-state regulator
(572 watts @ 3000 rpm, 585 watts peak)
Starting 1.2 kw electric w / Bendix-tpe engagement
Lights: (As per country regulation)
Quartz halogen headlamp, 55-watt low beam, 60-watt high beam
Passing lamps 2 @ 35W (except Nowhere prohibited by law)
Tail / stop lights 3 Each @ 28w (Int'l: 21W)
Turn signal lights (self-canceling) 28w (Int'l: 21W)
Indicator lamps High beam, passing lamps, neutral, oil pressure,
engine diagnostic light, low fuel warning, cruise control,
speakers, accessory, turn signals, and security system (optional) 3
Styling / Convenience
Engine Trim Black powdercoated w / chrome Covers
Exhaust System Chrome crossover duals, blunt-cut muffler
Console-mounted ignition Tank
Extended Seat comfort; Plush, pillow-look;
accepts available driver backrest
Passenger backrest Integrated in Tour-Pak lid w / wrap-around armrest
Foot Supports Full-length operator floor boards
w / heel-toe shifter lever
Fork fairing-mounted "Bat Wing"
Air Deflectors Clear Lexan fairing w / hand-removable fasteners
Lower Fairings Fiberglass; removable; integral glove boxes
Windshield Clear Lexan
Glovebox two located in the lower fairings w / snap-Covers
Instruments Electronic speedometer and tachometer, fuel gauge, voltmeter;
oil pressure gauge, clock (integrated in stereo);
ambient water temperature gauge, odometer and resettable trip meter
Premium Stereo Sound System (40 watts per speaker) w / AM / FM / CD player,
fairing-mounted speakers, Weather Band, digital clock, radio controls for
passenger, bi-directional seek and scan, music search and music scan,
4 presets and automatic volume control w / adjustable sensitivity
Aux. Audio Input On radio face; Will accommodate any line-level audio
output device, like personal CD or MP3 player
Twin Antenna AM / FM / WB and CB Antennae
Integral Rear Speakers w / passenger backrest
Intercom Push-to-talk, or voice-activated w / adjustable sensitivity
4-Watt CB, 40-Channel CB electronically tuned
(Prohibited in Some countries) w / passenger controls
Headset / headset receptacles Driver and passenger helmet stereo headsets
receptacles for CB / intercom / sound system
(Use restricted in Some states and countries; single headset included)
Cruise Control Electronic w / set, resume, accelerate and decelerate functions
Handlebar Controls Start, engine cutoff; L / R turn signals, horn;
hi / low beam; sound system audio and channel control,
CB / intercom and cruise control
Hazard Warning Integrated w / turn signal controls
Electrical Power Outlet Cigarette lighter;
4-pin accessory connector seat Beneath
Tour-Pak Deluxe, fiberglass, side-hinged w / capacity for two full-face helmets,
fabric-lined interior, custom-fit woven-nylon soft luggage liners,
storage pocket, and the integral wraparound rear tail / brake lights,
Volume: 2.5 cu. ft. (75L)
Saddlebags Fiberglass w / hinged lids and chrome slant latches,
custom-fit woven-nylon soft luggage liners,
chrome dual-rail saddlebag Guards volume: 1.2 cu. ft. (36L) per bag
Luggage Locks Tour-Pak and saddlebag barrel-key, common w / ignition
Fork Lock Barrel key, common w / ignition
Gas Cap Lock Barrel key, common w / ignition
COLORS
Two-Tone Sterling Silver and Vivid Black, Vivid Black, Gunmetal Pearl
Luxury Blue Pearl, Luxury Rich Red Pearl, White Pearl
